16mm Coil by Crossing Technology
Regular price
$50.00 USD
Sale price
$50.00 USD
Regular price
$50.00 USD
Complete your setup
Optional Goodiez
16mm Coil by Crossing Technology
Product details
- 16mm Enail Coil for XLR Controllers (Works with Auber, Crossing Tech and Disorderly Conduction PID's as well as others with the identical pinout below. Does not work with high five and others with XLR but DIFFERENT pinout.
- Braided Kevlar Sheath Protects Wires
- Available in 110v or 220v
- 110v Works in North America
- 220v Works in UK, EU, AU
- 30 day warranty
- Optional handle(s)

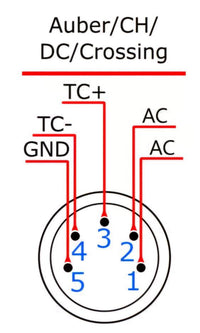

Pinout as follows:
1 - Power (white)
2 - Power (white)
3 - Thermocoupler (red)
4 - Thermocoupler (black)
5 - ground (green)
2 - Power (white)
3 - Thermocoupler (red)
4 - Thermocoupler (black)
5 - ground (green)
This will not work with all controllers that plug into it. The wiring has to match! We cannot be responsible for damage caused to coils and controllers based on improper wiring. No returns for mismatched wiring!
